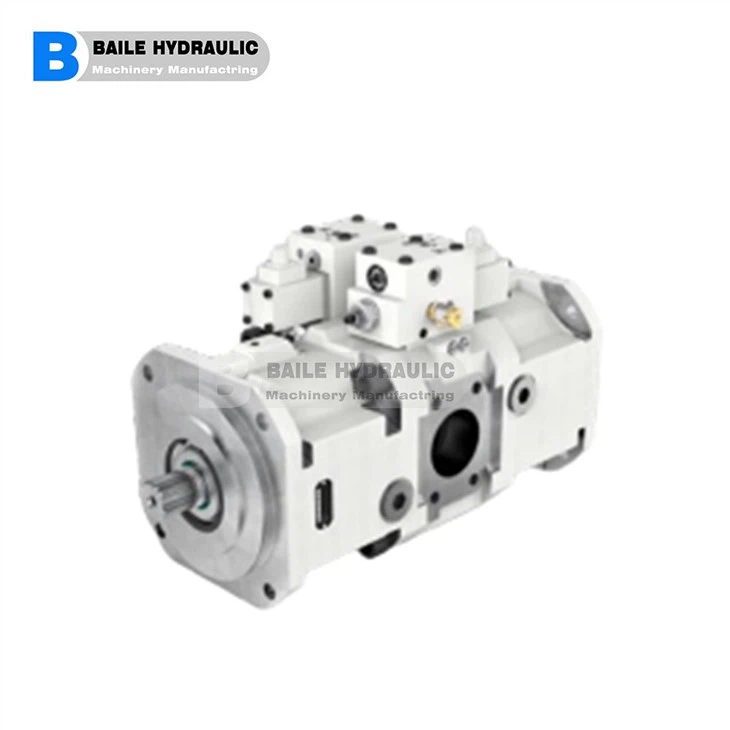

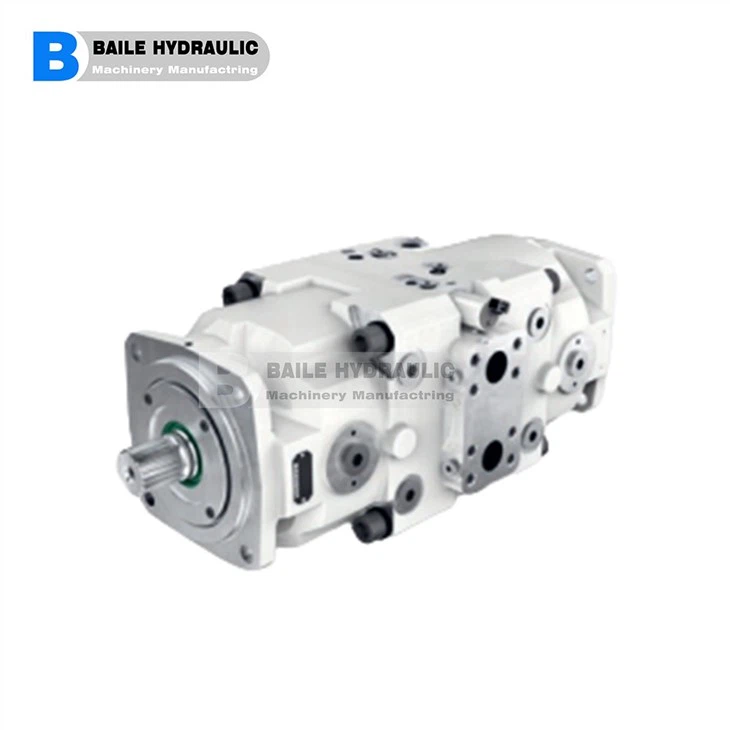

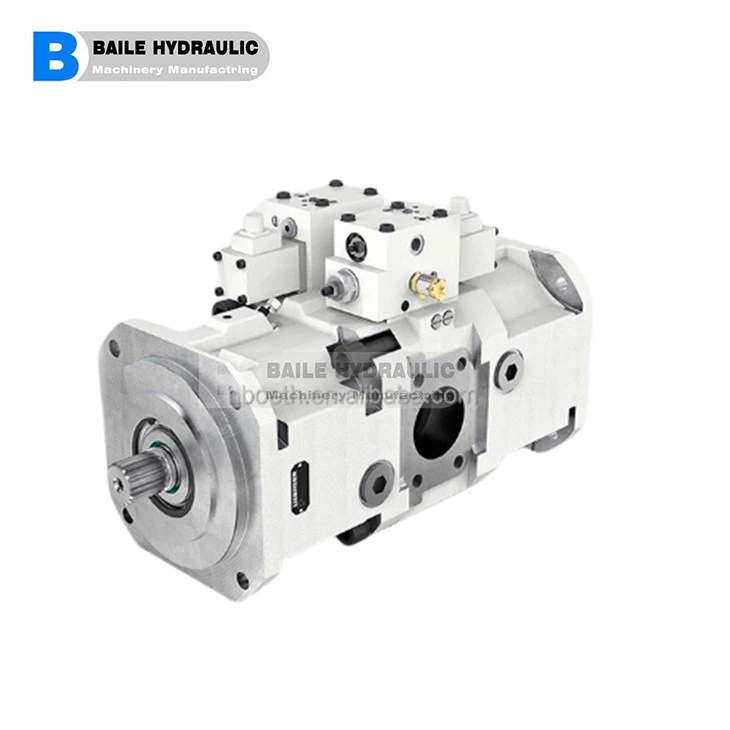

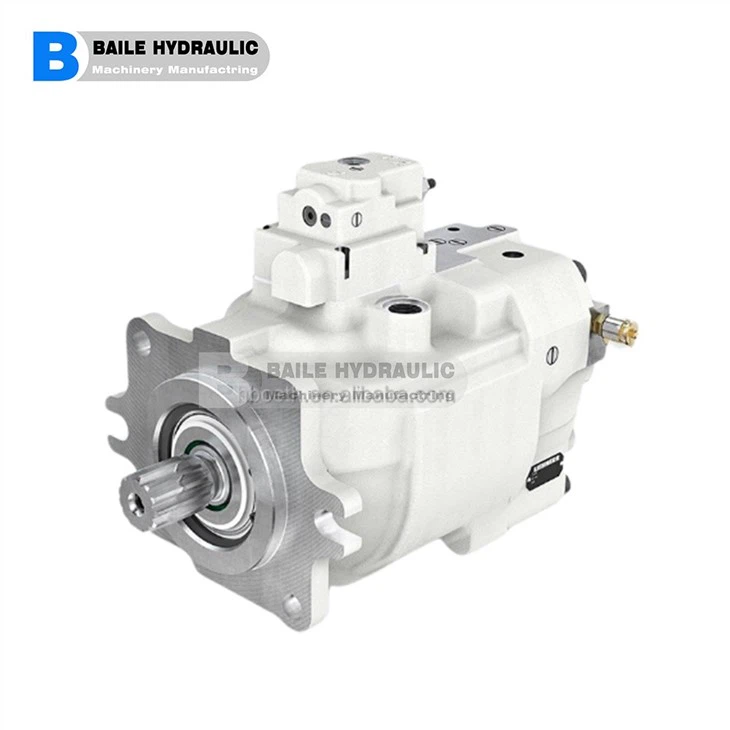

LIEBHERR Double Variable Displacement Pump LPVD LPVD45 LPVD64 LPVD75 LPVD90 LPVD100 LPVD107 LPVD125 LPVD140 LPVD150

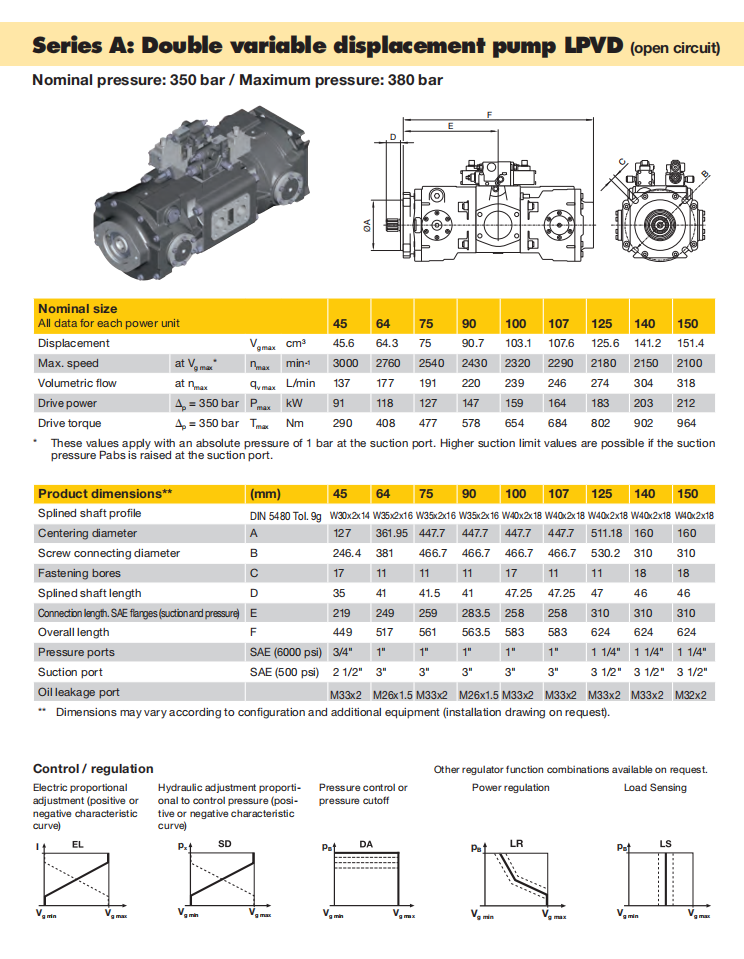

Nominal size All data for each power unit LPVD45 LPVD64 LPVD75 LPVD90 LPVD100 LPVD107 LPVD125 LPVD140 LPVD150 Displacement Vg max cm3 45.6 64.3 75 90.7 103.1 107.6 125.6 141.2 151.4 Max. speed at Vg max* nmax min-1 3000 2760 2540 2430 2320 2290 2180 2150 2100 Volumetric flow at nmax qv max L/min 137 177 191 220 239 246 274 304 318 Drive power p = 350 bar Pmax kW 91 118 127 147 159 164 183 203 212 Drive torque p = 350 bar Tmax Nm 290 408 477 578 654 684 802 902 964 * These values apply with an absolute pressure of 1 bar at the suction port. Higher suction limit values are possible if the suction pressure Pabs is raised at the suction port. Splined shaft length: 35mm 41mm 41.5mm 41mm 47.25mm 47.25mm 47mm 46mm 46mm Overall length : 449mm 517mm 561mm 563.5mm 583mm 583mm 624mm 624mm 624mm
