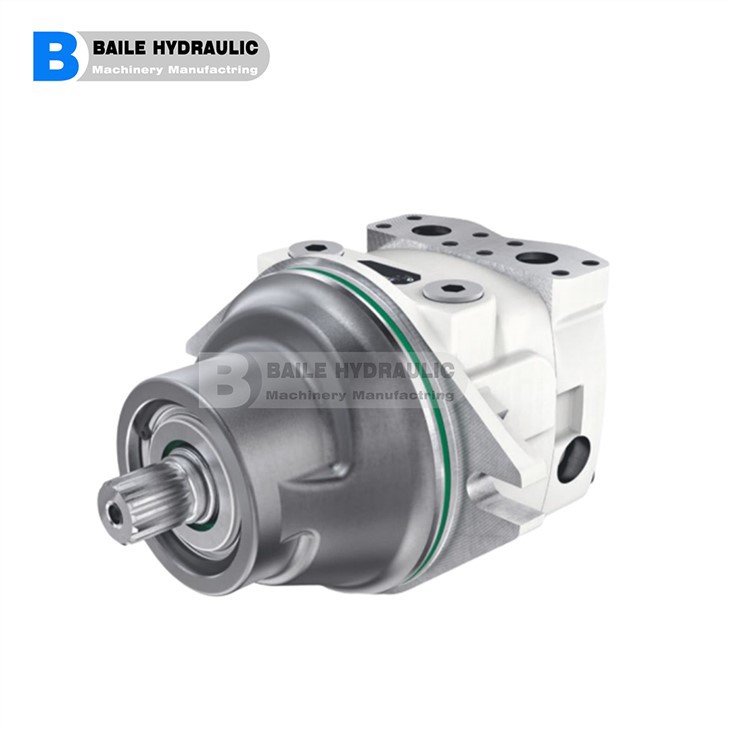

LIEBHERR FMF Plug-in Motor (fixed Displacement) FMF25 FMF28 FMF32 FMF45 FMF58 FMF64 FMF90 FMF100 FMF125 FMF165 FMF250

Open and closed circuit - Nominal pressure: 350 bar / Maximum pressure: 380 bar On request up to nom. size 64 : Nominal pressure: 420 bar / Maximum pressure: 450 bar Nominal size 25 28 32 45 58 64 90 100 125 165 250 Displacement Vg max cm3 25 28 31.8 45.6 58.3 64.3 90.7 103.2 125.7 165.9 256.8 Max. speed at Vg max and ip = 330 bar nmax min-1 5180 5180 5180 4620 4110 4110 3670 3540 3290 3000 2606 Flow at nmax qv max L/min 130 145 165 211 240 264 333 365 414 498 669 Output power p = 330 bar Pmax kW 71 80 91 116 132 145 183 201 227 274 368 Output torque p = 330 bar Tmax Nm 131 147 167 240 306 338 477 542 661 872 1349 Splined shaft profile DIN 5480 tol. 9g W25x1.25x18 W25x1.25x18 W25x1.25x18 W30x2x14 W35x2x16 W35x2x16 W35x2x16 W40x2x18 W40x2x18 W45x2x21 W50x2x24 Centering diameter A tol. h8 135 135 135 160 170 170 190 190 210 230 260 Screw connecting diameter B 160 160 160 200 200 200 224 224 248 280 310 Fastening bores C 13 13 13 18 17 17 21 21 21 26 26 Splined shaft length D 30 30 30 35 40 40 40 45 45 50 55 Insertion length E 88.5 88.5 88.5 92.3 92.3 92.3 110.5 110.5 122.8 130 145 SAE flange connecting length F 179.5 179.5 179.5 192 215 215 234.5 234.5 265 285 309 Overall length G 219.5 223.1 219.5 222 262 256 269.5 269.5 302 331 359 Pressure ports SAE (6000 psi) 1/2" 1/2" 1/2" 3/4" 1" 3/4"ou 1" 1" 1" 1 1/4" 1 1/4" 1 1/4" Oil leakage port M16x1.5 M16x1.5 M16x1.5 M18x1.5 M18x1.5 M18x1.5 M26x1.5 R 3/4" R 3/4" M33x2 M33x2
